Storage Policy Mappings

To configure a storage policy mapping:

  1. Log in to the vSphere Client.
  2. Go to Site Recovery > Open Site Recovery.

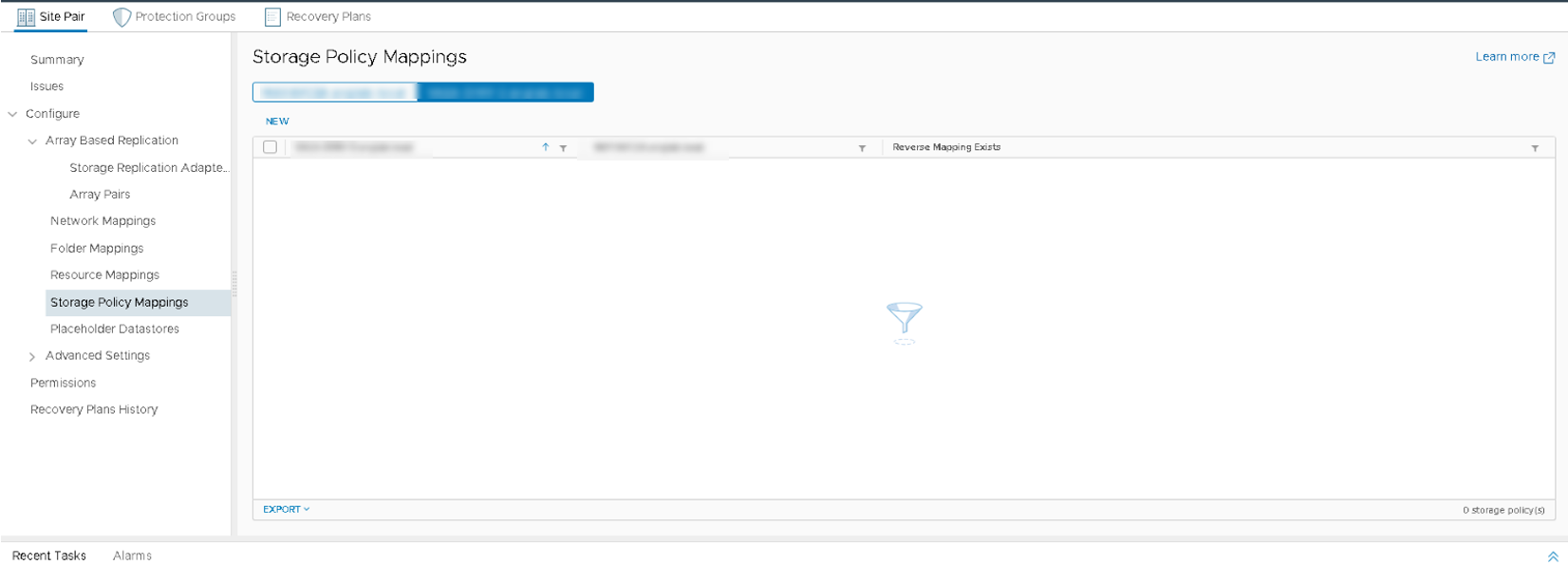

  3. Under the Site Pair menu options displayed on the left, click the Configure drop-down list and select Storage Policy Mappings. The Storage Policy Mapping page is displayed on the right.
  4. Click New.

    A dialog box is displayed.

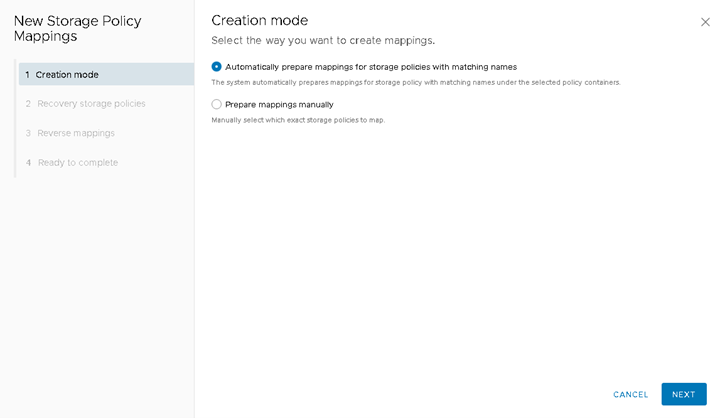

  5. Under the Create Mode option, click the applicable radio button and click Next.

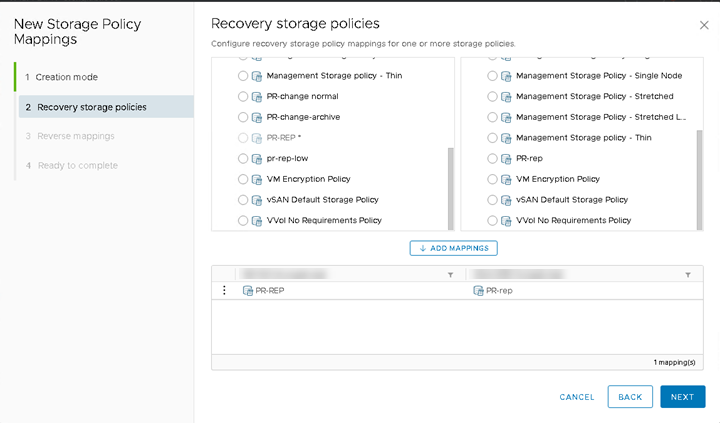

  6. Under the Recovery Storage Policies option, select a policy that has target details on the source side and a policy that has the source details on the target side.

  7. After selecting both policies, click Add Mappings and then click Next.

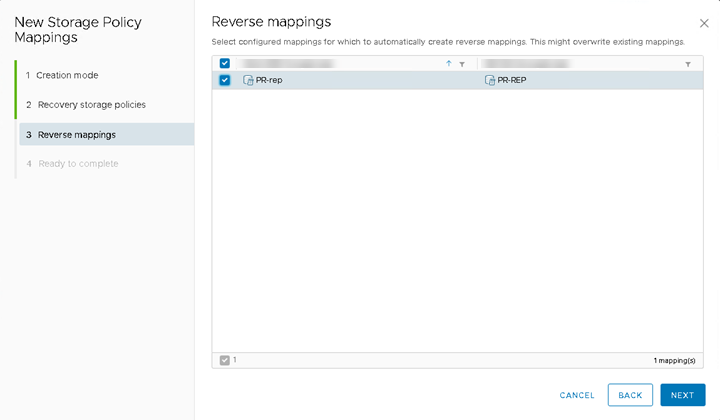

  8. Under the Reverse Mappings option, select the configured mapping and click Next.

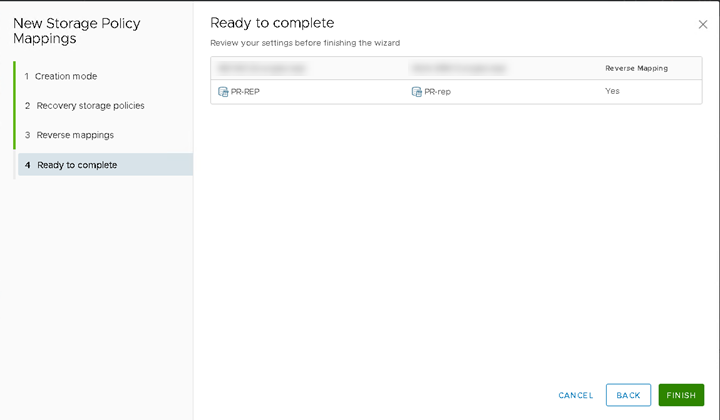

  9. Under the Ready to Complete option, review the settings and click Finish to complete the configuration.
