Mirror recovery
Recovery priority
Logstore
Monitoring mirror recovery and
data status
Pausing and resuming
mirror recovery for virtual disks
Controlling mirror
recovery speed for the server group
Forcing online mirrored virtual disks
Also see:
System Managed Mirroring
Virtual Disks for information about
virtual disks and write caching
Mirroring
A
mirrored virtual disk is created
from storage sources (disk pool or
pass-through disk) from two DataCore Servers in the same
server group. A 3-copy virtual disk
is created from storage sources (disk pool or pass-through disk) from
three DataCore Servers
in the same server group. Virtual disks with multiple storage sources
(or data copies) are referred to as multi-copy virtual disks.
A multi-copy virtual disk has front-end paths between the host and all
storage sources. However, host access is available to no more than two
DataCore Servers
at a time; these are referred to as the "active" storage sources
in the multi-copy virtual disk.
The storage source with disabled host access is referred to as the "inactive"
storage source. See Dynamic
Data Resiliency for more information.
Data is "synchronously” mirrored
between the storage sources in a virtual disk, meaning that the write
acknowledgement is not returned to the requesting storage host until the
data has been written to all DataCore Servers.
Mirroring is the process of keeping the virtual
disk data identical on all servers.
Mirror Recovery
Mirror recovery is the resynchronization of virtual disk data between
storage sources in a multi-copy virtual disk.
Virtual disks need mirror recovery when an event occurs that prohibits
the processing of data on a DataCore Server;
in which case the data is not
"up-to-date" on that storage source. If there remains another
active storage source that can receive host data, the data changes are
recorded in a log on that server. Once the issue is resolved, recovery
begins to resynchronize the data between the storage sources so that when
recovery is complete, all copies of the virtual disk data on DataCore Servers are identical.
Mirror recovery is either full or log-based:
o A log recovery resynchronizes only
the data that has changed on the not
"up-to-date" storage source since mirroring stopped to that
storage source. A log recovery takes considerably less time than a full
recovery.
For example, a log recovery could happen if I/O is running on Server1 and
the mirror connection to Server2 goes down, leading to what is commonly
referred to as "mirror down" on Server1. A log recovery is needed
from Server1 to Server2 to synchronize a mirrored virtual disk.
Note: When virtualization is stopped
on a server, SANsymphony
software flushes the DataCore Server
cache and all write operations are forced to the active mirror
partner, which starts to log data changes in memory. When virtualization
is restarted, a log recovery will begin and the log is used to resynchronize
the virtual disk data.
The log used for recovery is held in memory on
the server with active host access as long as virtualization is running.
If virtualization is stopped
on the active mirror and a logstore
pool is assigned, the log is saved to the "logstore" on that
server. When virtualization is restarted, the logstore will be used to
perform a logged recovery. If that log recovery is interrupted for any
reason while virtualization is running, the log recovery will resume and
include any new data changes that may have occurred in the interim.
If a logstore pool is not assigned
on the remaining server with host access, the log will be lost and those
virtual disks that require log recoveries will undergo full recoveries
to resynchronize the data. Assigning a logstore on all servers is important
to prevent full recoveries in this scenario, see Logstore
for more information.
o A full recovery synchronizes all storage allocation units (SAUs)
in the virtual disk storage source regardless of which SAUs may have changed.
Full recovery may be required when virtualization cannot be stopped cleanly or SANsymphony
software cannot flush the cache to the storage source before a server
is stopped. The next time virtualization
is started on that server, a full recovery may be performed to ensure
that all host I/O that was held in the DataCore Server
cache or not successfully destaged will be copied from the up-to-date
storage source. Note: If there was no host I/O in the server cache at
the time when the DataCore Server
was unexpectedly shutdown, SANsymphony
will detect this and a full recovery will not be needed.
For example, a full recovery could happen if I/O is running on Server1
and Server2 loses power and becomes temporarily unavailable. A full recovery
from Server1 to Server2 would be required when Server2 becomes available
again to synchronize a mirrored virtual disk.
If both
servers were not stopped cleanly at
the same time (i.e. power failure), virtualization will have to be manually
restarted on both servers and one storage source (the "last known
good") will have to be chosen to initiate the full recovery. That
storage source will have to be forced online in order for the full recovery
to begin. See Forcing Mirror Recovery
for more information.
Important Note
o When an
event occurs that prohibits the processing of data on a storage source,
the virtual disk is automatically put in write-through mode until the
issue is resolved and the virtual disk data has been fully synchronized,
Recovery Priority
Mirror recovery can be prioritized in the
storage profile for each dual and mirrored virtual disk. See Storage
Profiles for more information.
Recovery priority settings from highest to lowest
priority:
o Critical
o High
o Regular (default setting)
o Low
Recovery behavior:
o Recovery
is allocated based on the number of virtual disks needing recovery and
the resources available.
o Virtual disks of higher
priority are recovered before virtual disks of lower priority. For
instance, virtual disks with high priority will begin recovery first,
when high priority mirrors have recovered, virtual disks with medium priority
will begin recovery and so on.
o Virtual disks of lower
priority will begin recovery if they are ready to recover before virtual
disks of higher priority that are not ready to recover.
o The number of virtual
disks in recovery is affected by the Mirror
Recovery Speed server group setting which controls the overall mirror
recovery traffic for all servers in a server group and the Auto-recovery
virtual disk setting which suspends automatic recoveries for selected
virtual disks.
o Mirror recoveries do
not occur on dual
virtual disks unless configured for replication and only if the active
replication server becomes unavailable.
Logstore
Full recoveries require considerably more time than logged recoveries
to synchronize data. The logstore feature can optimize mirror recoveries
by eliminating full mirror recoveries under certain circumstances.
Data changes from hosts are logged to an in-memory bitmap on the active
mirror partner under certain conditions, such as when a write operation
on a mirror path fails (known as a "Mirror Down" condition)
or an I/O operation to the back-end storage fails (known as a "Local
Down" condition). If virtualization is then stopped on that active
mirror partner, the bitmap is saved on that server as long as a logstore
pool is assigned for it. The logstore is saved immediately before virtualization
is stopped due to either a Stop
DataCore Server
command, or a "controlled" Windows operating system shutdown
or restart.
When virtualization is running again on both
servers, the logstore with saved data changes is restored on the server
where it was saved. This allows a logged recovery to be performed from
that server on those virtual disks requiring recovery, instead of a full
recovery.
Without a logstore, the in-memory bitmap is lost if virtualization is
stopped on the active mirror partner and full recoveries would be performed
on those virtual disks that require mirror recovery.
A logstore is a hidden virtual disk and cannot be viewed in the configuration.
The logstore pool is assigned per server, and can be displayed, set, or
disabled in the DataCore Server Details page>Settings
tab. See Setting
a Logstore Pool below.
Important Notes:
o The best
practice is to create a dedicated logstore pool for each server in the
server group. In configurations where a server has a single pool and that
pool fails, the logstore will not be saved and full recoveries would be
necessary. When multiple pools exist on the server and the logstore pool
fails, change the logstore to another pool before stopping the server.
(A shared pool can also be assigned as a logstore pool.)
o When a logstore pool
is assigned, data changes are saved to the logstore at the time when virtualization
is stopped. Data changes are not
saved to the logstore if the server logging data changes restarts unexpectedly
or the logstore is unavailable for any reason (for instance due to a physical
disk or pool failure). In these cases, full recoveries will be performed
for those virtual disks that require mirror recovery.
o The logstore is created
with a logical size of 256 GB, which will be added to the oversubscription
size of the pool, although the size in use may be much less. The logstore
actually uses a maximum of 128 MB per virtual disk. Ensure there is enough
free space in the pool to accommodate all multi-copy virtual disks.
If the logstore runs out of space, the logstore will not be created and
an alert will be posted. In this case, full recoveries will be performed
for those virtual disks that require mirror recovery.
o Initially,
by default, if multi-copy virtual disks
exist on a server and a logstore pool is not specifically
set, the pool with the most available space will be automatically assigned
as the logstore pool.
o If
the logstore pool is deleted, the pool with the most available space will
be automatically assigned as the new logstore pool, unless the logstore
pool is set to No Logstore Pool
in the DataCore Server
settings. See Setting
a Logstore Pool.
o The
logstore can be changed or removed while the server is stopped. In the
case of a logstore change, full recoveries will be performed for those
virtual disks that require mirror recovery since the new logstore was
not saved before the server was stopped.
o If
the logstore is changed while the pool is disconnected or the logstore
is unavailable, it is possible that when the pool is brought back, the
original logstore will become an auto-generated virtual disk named "Logstore
<server name>, and will be visible in the configuration. This logstore
will be invalid and will not be used.
o Logstores are not created
unless multi-copy virtual disks
exist on the server.
Setting a Logstore Pool
To save data changes to a logstore on a server, a logstore pool must
be assigned for that server.
The initial default setting is Auto
Select Logstore, which allows the software to select the logstore
pool based on the pool with the most available space. Once a different
selection has been made, Auto Select
Logstore is not available for selection by the user.
The software automatically resets to Auto
Select Logstore when a previously selected logstore pool is later
deleted from the configuration and no other logstore pool has been assigned.
In this case, the logstore is automatically assigned until the user chooses
another pool.
The selection No Logstore Pool
disables the feature by preventing a logstore from being saved on the
server. This setting will not optimize mirror recoveries.
To set the logstore pool:
1 In the
DataCore Server Details page>Settings
tab, expand General Settings.
2 In Logstore
pool, use the pull-down menu to select the pool to use for the
logstore.
3 Click
Apply. Set the logstore
pool for each server in the server group.
Monitoring Mirror Recovery
Mirror recovery can be monitored from:

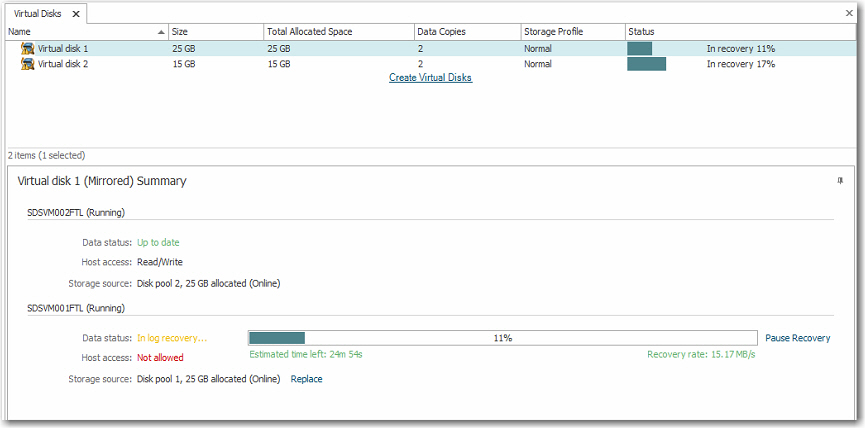

o In Virtual Disks List,
in the Status column. When the
virtual disk is selected from the list, individual status for storage
sources in a mirrored virtual disk can be seen in the Data
status field in the Virtual Disk
Summary area.

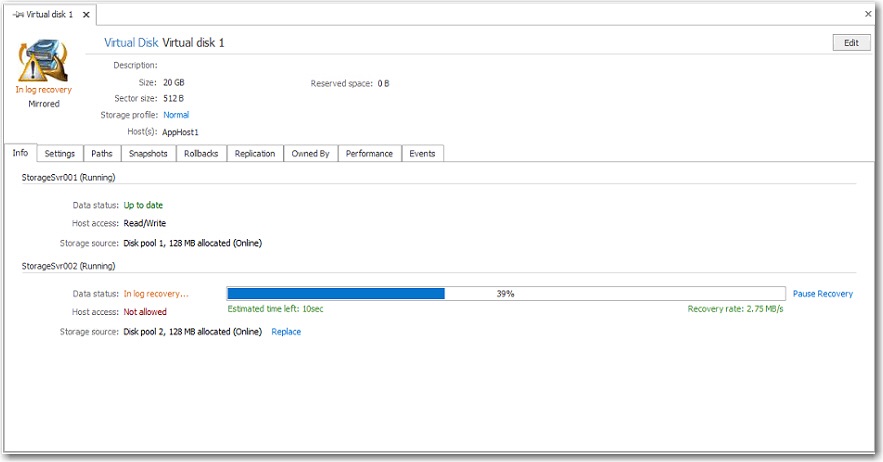

o In the Virtual
Disk Details page under the icon. Individual status for storage
sources in a mirrored virtual disk can be seen in the Data
status field in the Info
tab.
o In the Status
column in the Virtual Disks tab
of any details page.
See Virtual Disk Status
for descriptions of general overall virtual disk status, as well as the
status of individual storage sources that comprise a virtual disk.
Pausing/Resuming Mirror Recovery for Virtual Disks
Mirror recoveries can be paused and resumed to mitigate the traffic
caused by recovery I/O. The Pause/Resume
Recovery feature enables virtual disks in recovery to be paused
to optimize host performance when necessary. Recovery can be resumed at
a time when the I/O has a lesser impact on performance. The recovery can
remain paused for any length of time. When recovery is resumed, it is
resumed from the point where it was paused.
Auto-recovery can be disabled
for selected virtual disks to prevent automatic mirror recovery. When
disabled, mirror recovery will not begin until it is manually started
and will only start the current recovery. Each subsequent recovery must
be manually started until the auto-recovery setting is enabled. The setting
takes immediate effect. When auto-recovery is disabled while in recovery,
that recovery will be paused. When auto-recovery is enabled, a paused
recovery will be automatically resumed. Auto-recovery is enabled by default.
Important
Notes:
o Pausing
recovery does not affect host access. Host I/O sent to the DataCore Server will be processed
as usual. When mirror recovery is paused, host I/O continues to be mirrored
as usual, as long as all storage sources of the mirror and the required
mirror paths are available, even if the virtual disk status is not up-to-date.
o When auto-recovery
for a virtual disk is disabled and that virtual disk is split, the default
setting (enabled) will be applied on both sides.
o When a virtual disk
is manually paused or has auto-recovery disabled, and mirror recovery
is needed for the virtual disk, the virtual disk status will reflect Log recovery paused or Full
recovery paused.

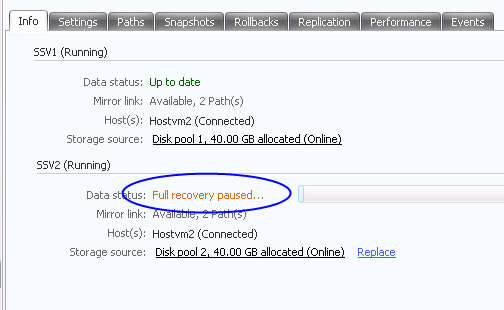

To pause or resume the current recovery of virtual
disks:
Also follow these steps to resume a current recovery that is paused
because auto-recovery is disabled.
1 In
the Virtual Disk Details page>Info
tab, click Pause
or Resume to
the right of the recovery progress bar.
Alternatively, this command can be performed for virtual disks or virtual
disk groups from a context menu in a panel or Virtual Disks List
and the setting is available in the Virtual Disk Details page>Settings
tab.
2 If paused, the virtual
disk status will reflect that the recovery is paused. The virtual disk
status is displayed on Virtual Disks Lists
or the Virtual Disk Details page.
To enable or disable auto-recovery for virtual
disks:
1 In a panel
or list, right-click on the virtual disks or virtual disk groups and point
to Recovery, then select Enable Auto-recovery or Disable Auto-recovery.
(Alternatively, the option can be initiated from the Virtual Disk details
page in the Settings tab.)
2 If auto-recovery is
enabled, "recovery disabled" will be appended to the status.
The virtual disk status is displayed on Virtual Disks Lists
or the Virtual Disk Details page.
Controlling Mirror Recovery Speed for the Server Group
The Mirror Recovery Setting
is a global server group setting that controls the overall speed used
for mirror recovery traffic for all servers in a server group. This setting
can increase, decrease, or suspend mirror recoveries for all servers in
the group. The throttling feature is useful when throughput would be better
spent performing activities other than mirror recovery, such as to accelerate
processing of heavy I/O from hosts. The mirror recovery speed
can be increased when host
I/O is light in order to speed up mirror
recoveries when it will not affect the processing of host
I/O.
Notes:
o Increasing
the mirror recovery speed may decrease the transfer of I/O from hosts.
o Setting the mirror
recovery speed to No Recovery
will suspend all mirror recoveries for all DataCore Servers
in the server group.
o The system distributes
recovery in the optimal manner based on the recovery setting in the storage
profile of virtual disks. Virtual disks with higher priority recovery
are given more of the throughput than those with lower priority. If the recovery setting is reduced while
recoveries are in progress, virtual disks that are already in recovery
will remain in recovery until complete, but the throughput for that virtual
disk will be reduced accordingly.
o Changing the speed
of mirror recovery may also change the amount of simultaneous recoveries
that occur on each server in the server group.
A slide bar is used to change the setting. Five speed settings are indicated
on the bar: No Recovery, Normal recovery (default setting),
Maximum recovery, and midrange
recovery settings between each of the labeled settings. For instance,
to double the normal throughput rate set the recovery to Max.
To decrease the normal throughput rate by 50%, set the speed to the midpoint
between no recovery and normal recovery. Set the recovery to No
Recovery to suspend the recovery for all servers in the server
group.
For example, if all virtual disks are in recovery using the normal speed
and assuming that all recoveries will finish in four hours, then if the
recovery speed is increased to the maximum setting, all virtual disk recoveries
will finish in two hours.
To change mirror recovery speed for all servers
in a server group:
1 In the
Server Group Details page>Settings
tab, expand Advanced Settings.
2 Use the Mirror
recovery speed slider bar to change the setting.
3 Click Apply.
The setting takes effect immediately.
Forcing Online Mirrored Virtual Disks
A multi-copy virtual disk
that displays a virtual disk status of Unknown
or Double failure indicates that
both servers with active storage sources to the host have suffered simultaneous
or concurrent failures and the storage sources are no longer in synchronization
which could put data at risk. When this occurs, the host will not have
access to the virtual disk.
When necessary, the Force online
operation can be performed to force recovery for virtual disks using the
selected storage source. When recovery is forced, data initialization
(re-synchronization) occurs from the DataCore Server
whose storage source is forced online and the data on that storage source
is mirrored to mirror partner (if the server is operational).
Important Notes:
o Forcing
a storage source to recover involves risks and should be used with extreme
caution. Recovering
from the incorrect storage source will result in data loss. Before
forcing the storage source online, check the Windows
Event Logs on the host to determine which DataCore Server
was actively servicing I/O requests at the time the failure occurred.
Also, check the allocated storage size on both DataCore Servers
before making the decision. In some cases, it may not be correct to force
online the storage source on the last server to go down; the server with
the most SAUs allocated may determine which DataCore Server
should be used to recover. A safe alternative
to forcing online is to split the mirror and carefully examine the storage
sources, then remirror with the optimal storage source. If unsure of how to proceed, contact DataCore Technical Support
for assistance.
o When mirror paths
are unavailable, virtual disks cannot be forced online. In this
case, the virtual disk can be split to gain access to storage sources,
although high-availability will be lost. Use caution in determining which
side of the split virtual disk to use, then a mirror may be added to regain
high-availability. A full recovery will be performed to synchronize the
data.
o The Force
online option is only accessible when required; otherwise, the
option is hidden.
o Recovery can be forced
for one virtual disks or all
virtual disks on a DataCore Server.
There is one important difference between forcing
one virtual disk online and performing the same operation for all virtual
disks on a server. The Force Online operation can only be performed for
a server when virtual disks are offline, not
when virtual disks are in double failure. (Instructions for both scenarios
follow.)
To force online one virtual disk:
1 In the
Virtual Disk Details page>Info tab, determine the correct
DataCore Server from
which to initiate the operation.
(Alternatively, virtual disk operations can be performed from the Virtual
Disks List.)
2 In the
Host access field of the storage
source to initiate recovery from, click the Force
online link.
3 Click
OK in the confirmation box to
continue.
4 Verify
the recovery is taking place and ensure the host has access to the virtual
disk again.
To force online all virtual disks on a DataCore Server:
This operation will
cause the recovery of all
virtual disk storage sources on the selected DataCore Server.
1 In the
DataCore Servers Panel,
right-click on the correct DataCore Server
from which to initiate the operation and select Force
virtual disks online.
2 Click
OK in the confirmation box to
continue.
